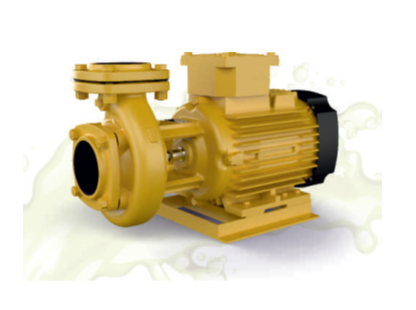

KDI EE5

Air conditioning and refrigeration system, Cooling towers, Fire fighting, Water supply, Clear water handling at high pressure in industries, Clear water handling in ETP/STP Plants, Handling hot water in par boiled rice making machines, Hot water handling at High Pressure in Industries

Industrial Range Pump - Monobloc Pumps - Three Phase

Ultra Premium Efficiency – Lower life cycle cost with lower operating cost.
Higher Specific Discharge – Up to 16.6 % less energy consumption for pumping same amount of fluid.
High grade F-Class insulation with Temperature rise limited to B-Class – Robust design to withstand higher temperatures reducing the chances of motor burning and ensures the reliability, safety and enhanced life.
High Efficiencies Achieved with AC Induction Motor Design – Rugged and most suited to work under varied field conditions. Easy to operate, maintain and service at local levels as there is no use of permanent magnets/added accessories/control equipment.
Cathodic Electro Deposition (CED) Coating – Provides 5 times more protection over conventional painting, resulting in longer life.
Dynamically Balanced Rotating Parts – Minimum vibration ensures consistent performance and longer component life.
Superior Mechanical Seal – Zero leakage, lower friction loss, longer shaft life; Carbon Vs Ceramic mechanical seal with HNBR handles fluid up to 120°C.
Replaceable Wearing Parts – Easy accessibility for maintenance extending pump life.
Optimum Fan and Fan Cover Design – Optimum cooling with minimum power consumption and quiet operation.
Technical Specification – Head Range: Up to 54 Meters | Discharge: Up to 33 LPS | Power: 1.1 - 3.7 kW (1.5 - 5.0 HP) | Voltage: 350–440V | Insulation: F Class | Protection: IP55.

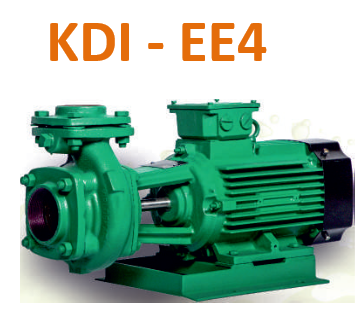

KDI EE4

Air conditioning and refrigeration system, Cooling towers, Fire fighting, Water supply, Clear water handling at high pressure in industries, Clear water handling in ETP/STP Plants, Handling hot water in parboiled rice making machines, Hot water handling at High Pressure in Industries

Industrial Range Pump - Monobloc Pumps - Three Phase

Premium Efficiency IE4 Motor and Energy Saving Design – Lower energy consumption and significant cost savings.
Superior Mechanical Seal – Zero leakage, lower friction, longer shaft life; handles fluid up to 120°C.
Cathodic Electro Deposition (CED) Coating – 5x protection against corrosion compared to conventional painting.
Dynamically Balanced Rotating Parts – Reduced vibration for reliable operation.
Replaceable Wearing Parts – Extends service life and ease of maintenance.
Flatter Efficiency Curve – Stable efficiency across a wide operating range.
Design to Prevent Overloading – Motor protected even at lower heads.
Automatic Air Release – Smooth and swift startup without air locks.
Technical Specification – Head Range: Up to 80 Meters | Discharge: Up to 39 LPS | Power: 1.5–15 kW (2–20 HP) | Voltage: 350–440V | Insulation: F Class | Protection: IP55.

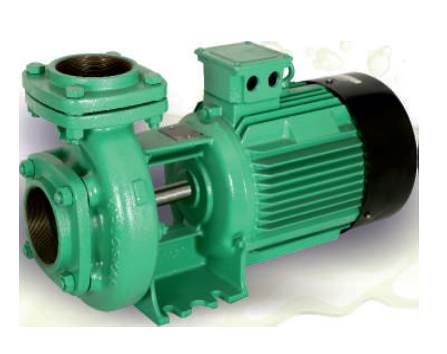

KDI EE2

Air conditioning and refrigeration system, Cooling towers, Fire fighting, Water supply, Clear water handling at high pressure in Industries, Clear water handling in ETP/STP Plants, Handling hot water in parboiled rice making machines, Hot water handling at high pressure in Industries

Industrial Range Pump - Monobloc Pumps - Three Phase

High Efficiency IE2 Motor and Energy Saving Design – Delivers optimum efficiency at lower energy consumption.
Superior Mechanical Seal – Zero leakage, protects shaft, handles fluid up to 120°C.
Cathodic Electro Deposition (CED) Coating – Uniform anti-corrosion coating for longer life.
Dynamically Balanced Rotating Parts – Ensures minimum vibration and consistent performance.
Replaceable Wearing Parts – Ease of maintenance, extended pump life.
Flatter Efficiency Curve – Better adaptability to variable operating conditions.
Design to Prevent Overloading – Reduced risk of motor burning even at lower heads.
Automatic Air Release – Eliminates need for manual air release cock.
Technical Specification – Head Range: Up to 68 Meters | Discharge: Up to 33 LPS | Power: 1.5–7.5 kW (2–10 HP) | Voltage: 350–440V | Insulation: F Class | Protection: IP55.

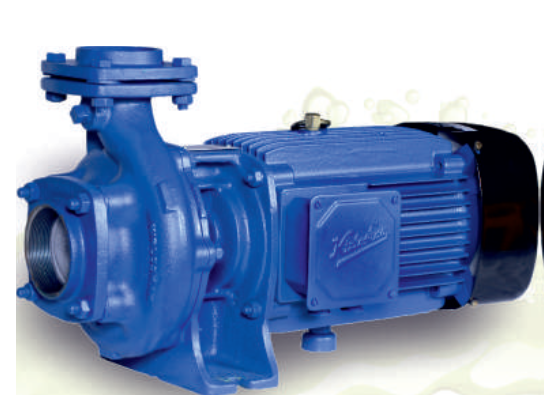

KDI

Air conditioning and refrigeration systems, Cooling towers, Clear water handling at high pressure in industries, Irrigation in horticulture & agriculture, Fire fighting systems

Industrial Range Pump - Monobloc Pumps - Three Phase

Flatter Efficiency Curve – Stable performance across the operating range.
Wide Voltage Design – Operates reliably between 350–440V, protects against motor burning.
Designed to Prevent Overloading – Lower risk of damage at off-design heads.
Replaceable Wearing Parts – Easy maintenance and life extension.
Dynamically Balanced Rotating Parts – Protects from vibration-related damage.
Cathodic Electro Deposition (CED) – 5x better corrosion resistance.
Automatic Air Release – Smooth and swift startup operation.
Mechanical Seal – Ensures zero leakage, lower friction, longer shaft life.
Technical Specification – Head Range: Up to 80 Metres | Discharge: Up to 39 LPS | Power: 1.5–22 kW (2–30 HP) | Voltage: 350–440V | Insulation: F Class | Protection: IP55.

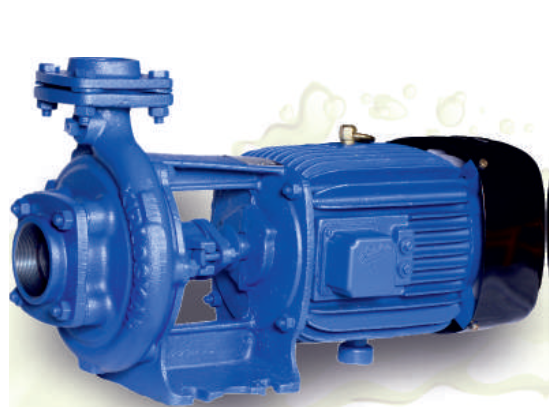

KDS/GMC

Air conditioning and refrigeration systems, Cooling towers, Clear water handling at high pressure in industries, Irrigation in horticulture & agriculture, Fire fighting systems

Industrial Range Pump - Monobloc Pumps - Three Phase

Flatter Efficiency Curve – Maintains consistent efficiency in variable conditions.
Wide Voltage Design – Works reliably between 300–440V.
Designed to Prevent Overloading – Prevents motor damage at lower heads.
Replaceable Wearing Parts – Easy serviceability and long life.
Dynamically Balanced Rotating Parts – Reduced vibration, longer component durability.
Cathodic Electro Deposition (CED) – Provides 5x protection against corrosion.
Automatic Air Release – No need for manual venting.
High Efficiency and Energy Saving Design – Lower power costs with optimized design.
Technical Specification – Head Range: Up to 80 Metres | Discharge: Up to 49 LPS | Power: 0.37–22 kW (0.5–30 HP) | Voltage: 300–440V | Insulation: B Class (≤7.5 HP) / F Class (>7.5 HP) | Protection: IP44 / IP55.

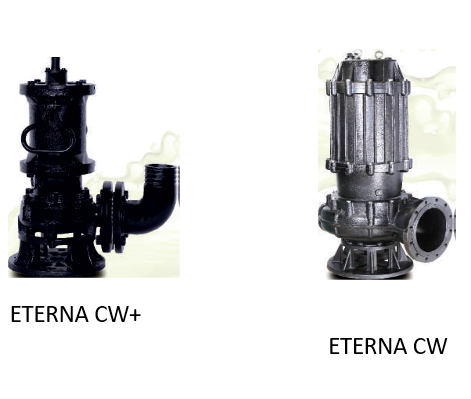

ETERNA CW & CW+

Sewage pumping, Dewatering from basements, multi-storeys, shopping malls, godowns, Construction site dewatering, trenches and pits, Flood water handling

Submersible Pump

High Efficiency and Energy Saving Design – Optimized for lower energy costs.
Easy Maintainable Designs – Interchangeable components for easy servicing even at remote sites.
Robust Construction – Graded cast iron body, carbon + silicon carbide seal for sewage and sludge.
Replaceable Wearing Parts – Convenient maintenance, extended pump life.
Dynamically Balanced Rotating Parts – Stable, low-vibration operation.
Technical Specification – Head Range: Up to 70 Metres | Discharge: Up to 4920 LPM | Power: 0.37–15 kW (0.5–20 HP) | Voltage: 300–440V (CW+), 380–440V (CW) | pH Value: 6.5–7.5 | Max Density <1050 kg/m³ | Protection: IP68 | Medium Consistency <1.2 x 10³ kg/m³ | Max Ambient Temp: 40°C | Insulation: B/E Class.
